  –  6                          -    ---          RS-
SimpleComTools, LLC
COM1000
 User Manual
SimpleComTools, LLC

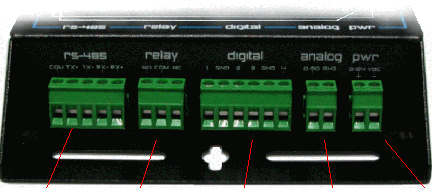

Hardware interfaces
The COM1000 provides the following hardware interfaces:
One Analog Input
Four Digital Inputs
One Relay Input
Relay Outputs
Digital Inputs
Analog Inputs
Power Input
This interface is used to
connect a device that you
want to turn on and off.
This interface is used to
connect simple contact
closure switches.
This interface is used to
connect simple analog
measurement gauges.
This interface is used
to connect to a 9
30 VDC
power source.
LAN interface connections
The 10 BASE
TX connection is used for connections to any Ethernet LAN. This type of installation requires
the use of Category 5 twisted
pair wire. The 10BASE
TX interface complies with the EIA 568 wiring standard.
Sample Ethernet Connections

    COM1000 connected to an Ethernet LAN                   COM1000 connected to a PC using a crossover cable
485 Port
Relay
         (4) Digital Inputs    (1) Analog Input
  DC Power
