COM1000 Information Free 30-day Trial





The COM1000 Industrial Internet Appliance  is a unique blend of Serial and TCP/IP communications, digital and analog inputs, relays, and embedded applications - all combined to help serve many of today's unique and often complex industrial networking challenges.It's features include:

  • (4) Digital Inputs (contact closures)
  • (1) Analog Input (Variable voltage)
  • (1) Relay Output
  • (1) RS232 Serial Device Server (TCP and UDP)
  • (1) RS485 Serial Device Server (TCP and UDP)
  • Ethernet, RS232, RS485 ports
  • Supports CDMA, GPRS, Dialup and private radio
  • Supports HTTP, TCP, UDP, PPP, SNMP, DNS/DDNS, NTP
  • Email,FTP, and SMS clients
The COM1000 is not a platform for development. This is a rugged, ready-to-go network appliance. There's no SDK to buy - no scripting languages to learn. Just wire-it-up, choose an application, and off you go. It's just that simple.


How can you use the COM1000? Who uses the COM1000?

Use it by itself …

The fully integrated DIGITAL INPUTS, ANALOG INPUTS, and RELAY allow you to use one event to trigger another. Examples include:

  • Monitor for analog value set points (specific temperature, pressure, etc) and use it to trigger the relay or send an email.
  • Monitor the internal temperature of the COM1000 and trigger the relay or send an email at a certain temperature
  • Trigger the activation of the relay with one of the digital inputs connected to a contact closure (external switch)
  • Set the COM1000 scheduler to activate the relay every hour, every day, every week, or even every month
  • Activate or deactivate the relay remotly when a local contact closure occurs.

Connect the ANALOG INPUT and RELAY, and you have a perfect SOLAR BATTERY monitor that can shut off equipment or start an electric generator.


Connect a switch or motion sensor to one of the (4) DIGITAL INPUTS and you have a turnkey alarm monitoring system to trigger an alarm or give access to a control system.

Use it on your LAN …

Along with the above functions, the COM1000 can also perform many network related functions as well.

Embedded applications enable you to:

  • Initiate TCP or UDP communications sessions
  • FTP a file to a file or web server
  • Send email (SMTP) alerts based upon changes in DIGITAL INPUTS, ANALOG VALUES, or SERIAL DATA STREAMS.
  • Alert users using their desktop Instant Message (IM) interface

Connect your Serial devices …
Connect your RTU, PLC, or Data Logger to the RS232 or RS485 ports and select from a number of options, including:

  • Data Logging
  • Event Counter
  • UDP, TCP, FTP, SMTP(email), or IM data transport
  • Telnet access to the RTU, PLC. or Logger (Serial Device Server)
  • SMS Alerts to your cellphone
  • Instant Message (IM) access













Wireless
Integrators



The COM1000 is the 'bump-in-the-cord" that wireless integrators have been waiting for. The ability to connect to wireless modems while still providing I/O and the ability to connect terminals or PCs makes it ideal for:

  • ATM or Vending Alarms/Security
  • Armored Car Alarming Security
  • Taxi/Limo Security Monitoring
  • Driver Construction Site Security
  • Construction Equipment Security
  • Security/Access Control Systems

Homeland Security
Providers

  • Public Safety Vehicle Security
  • Equipment Use Monitoring
  • Vehicle Diagnostics and Control
  • Wireless/Mobile Alarm Solutions
  • Perimeter Monitoring Alarms
  • Enables silent alerts from chemical agent monitoring equipment
  • Enables message alerts for security screening events, such as baggage scanning, bomb or weapons detection, or passenger concern.

 Industrial Data Engineers

The COM1000is perfect for those situations that require a device that can handle analog and digital inputs, trip a RELAY, and log data - but don't need a full-blown PLC, RTU or alarm system. This makes it an ideal choice for:

  • SCADA/Telemetry/DA Systems
  • Public Utility Alarm Systems
  • Remote Data Collection
  • Solar System Monitoring/Alarms

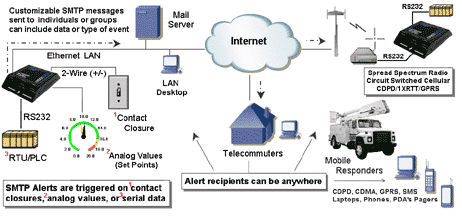

Network Connection Diagram
(Click on the Image to Enlarge)



For More information, please Contact US
